| Style: |

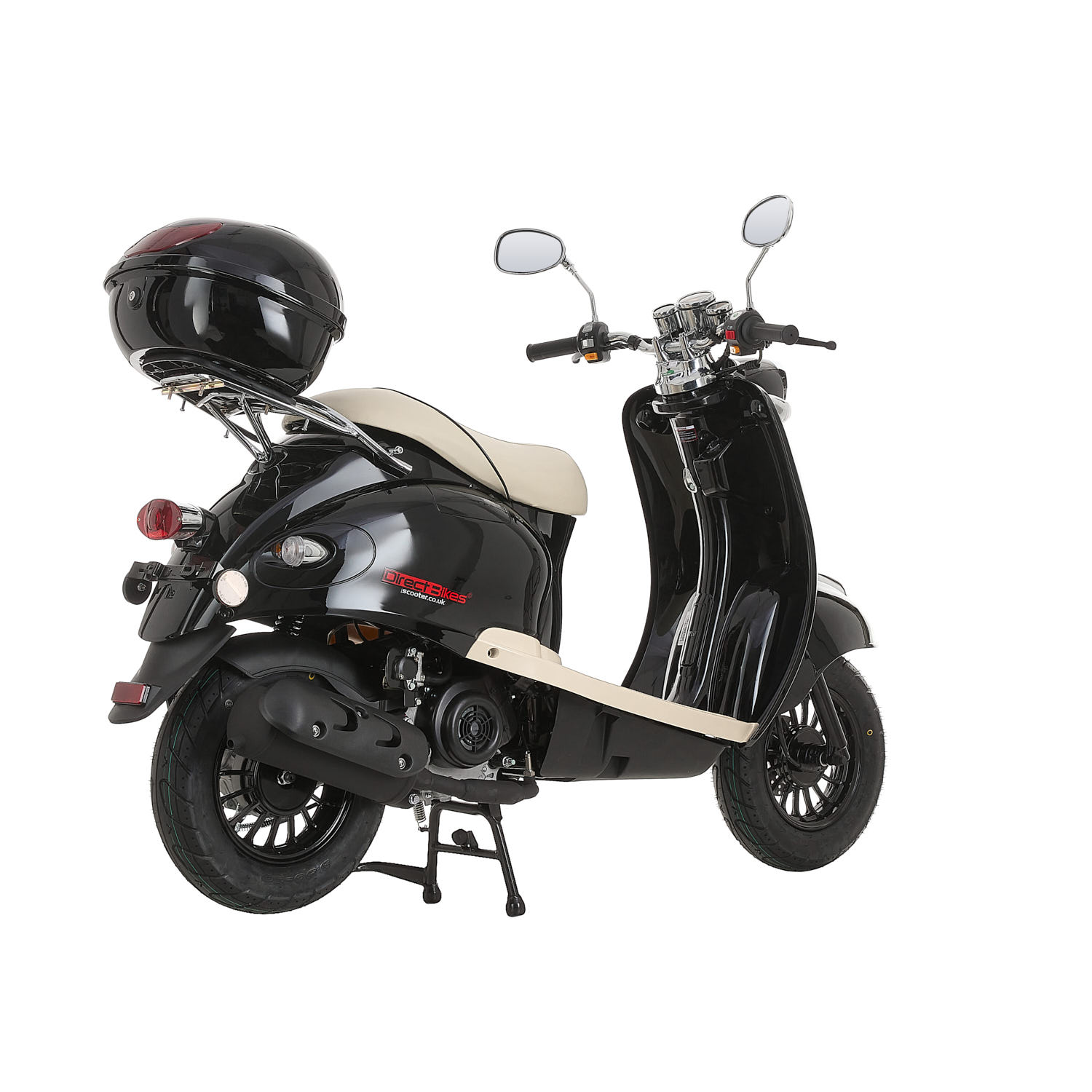

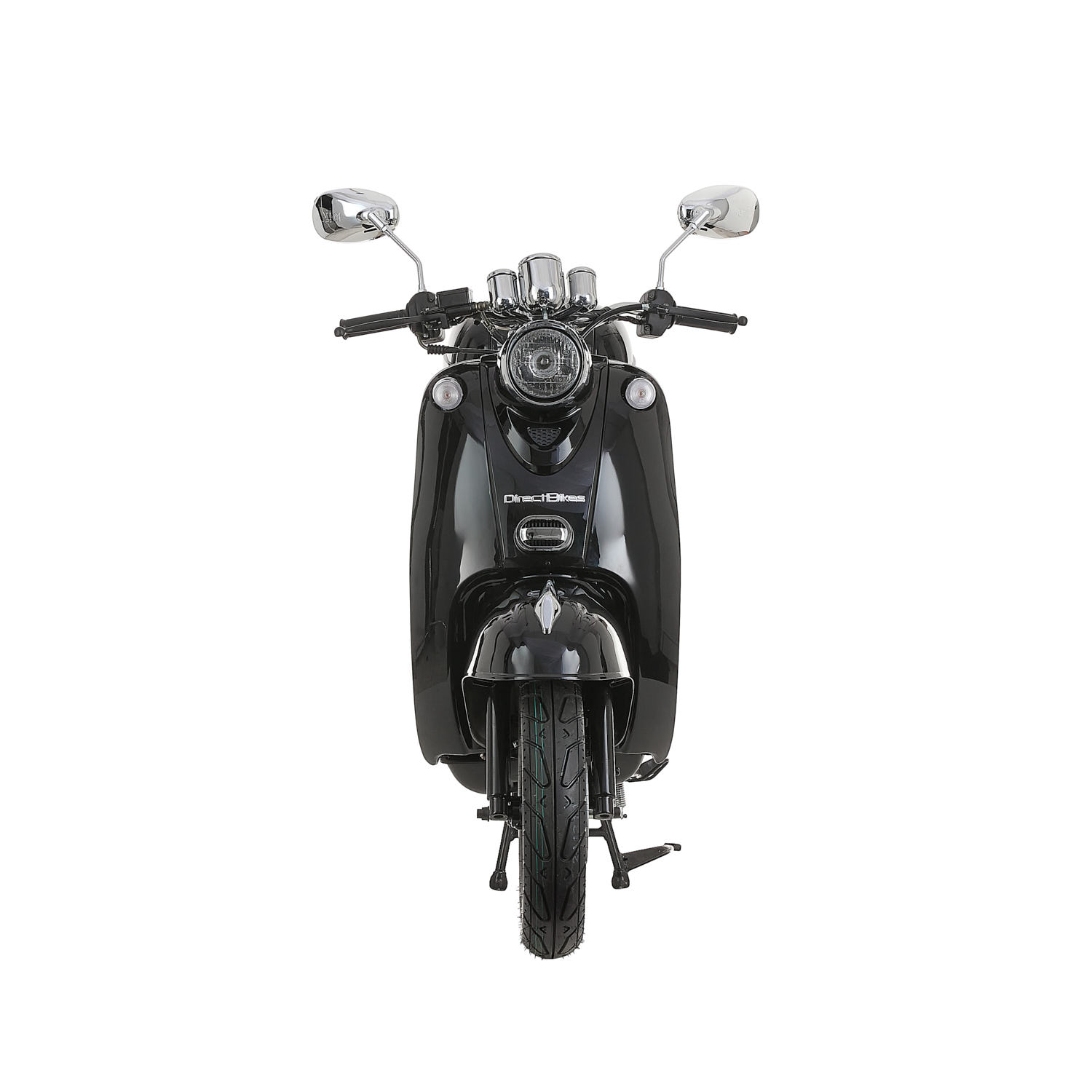

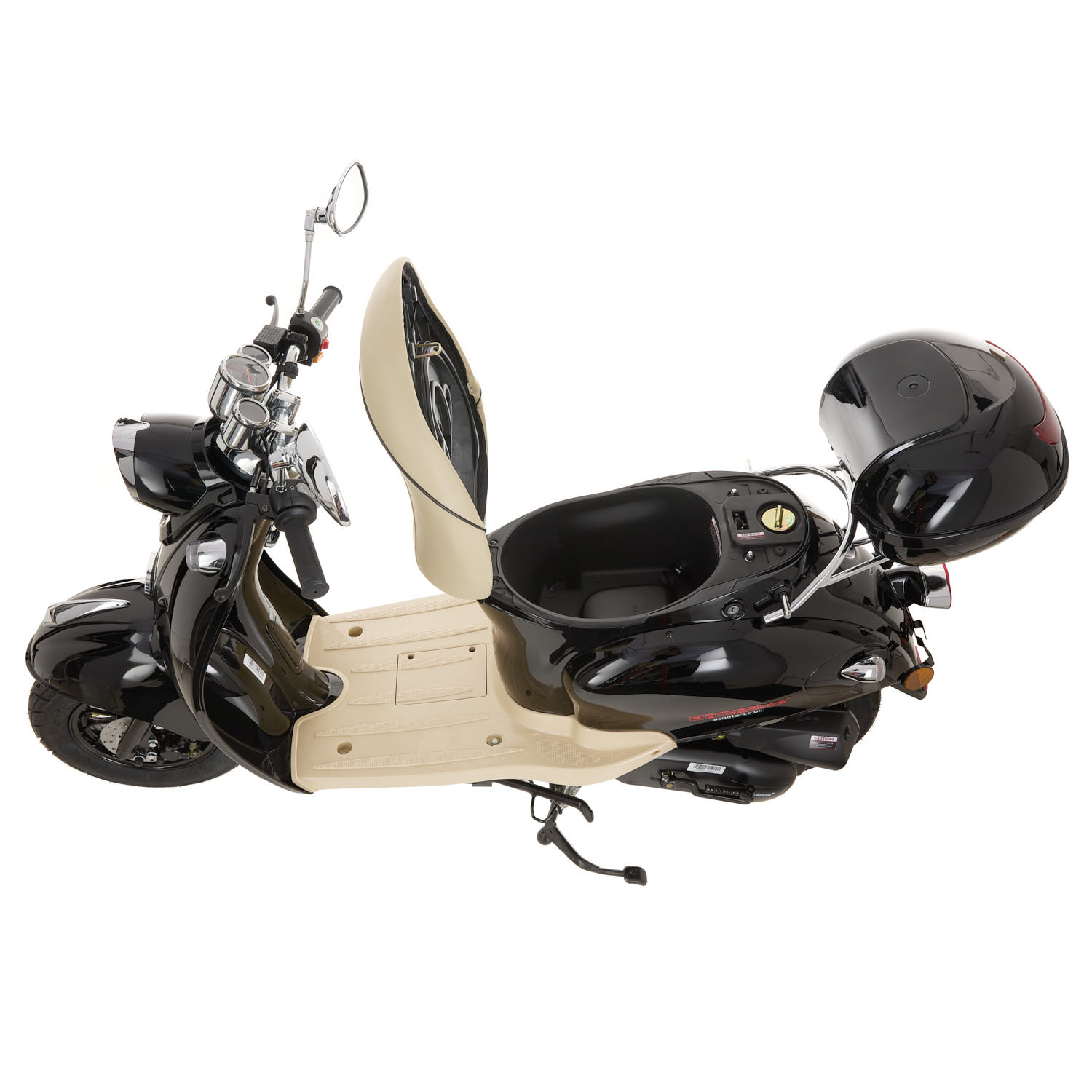

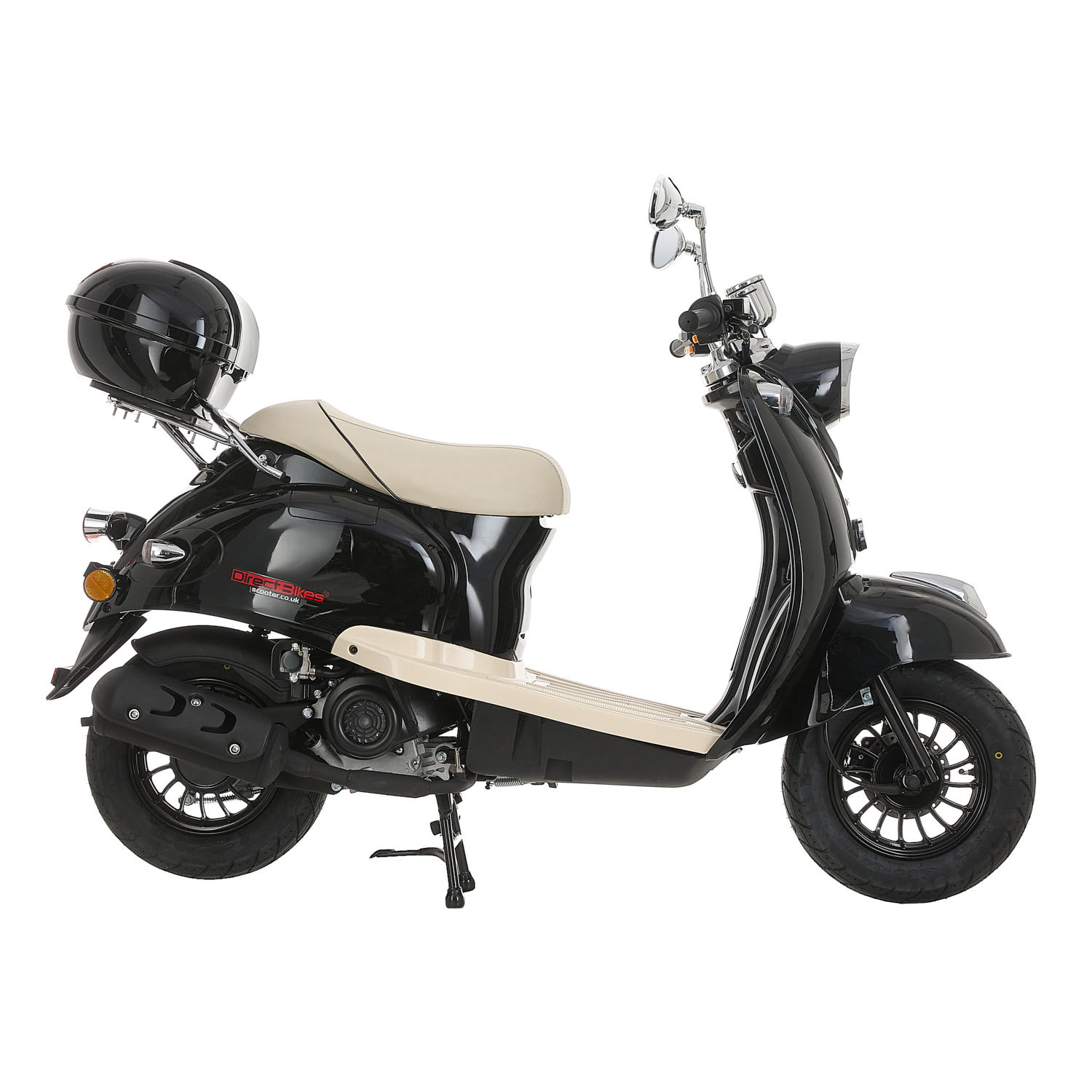

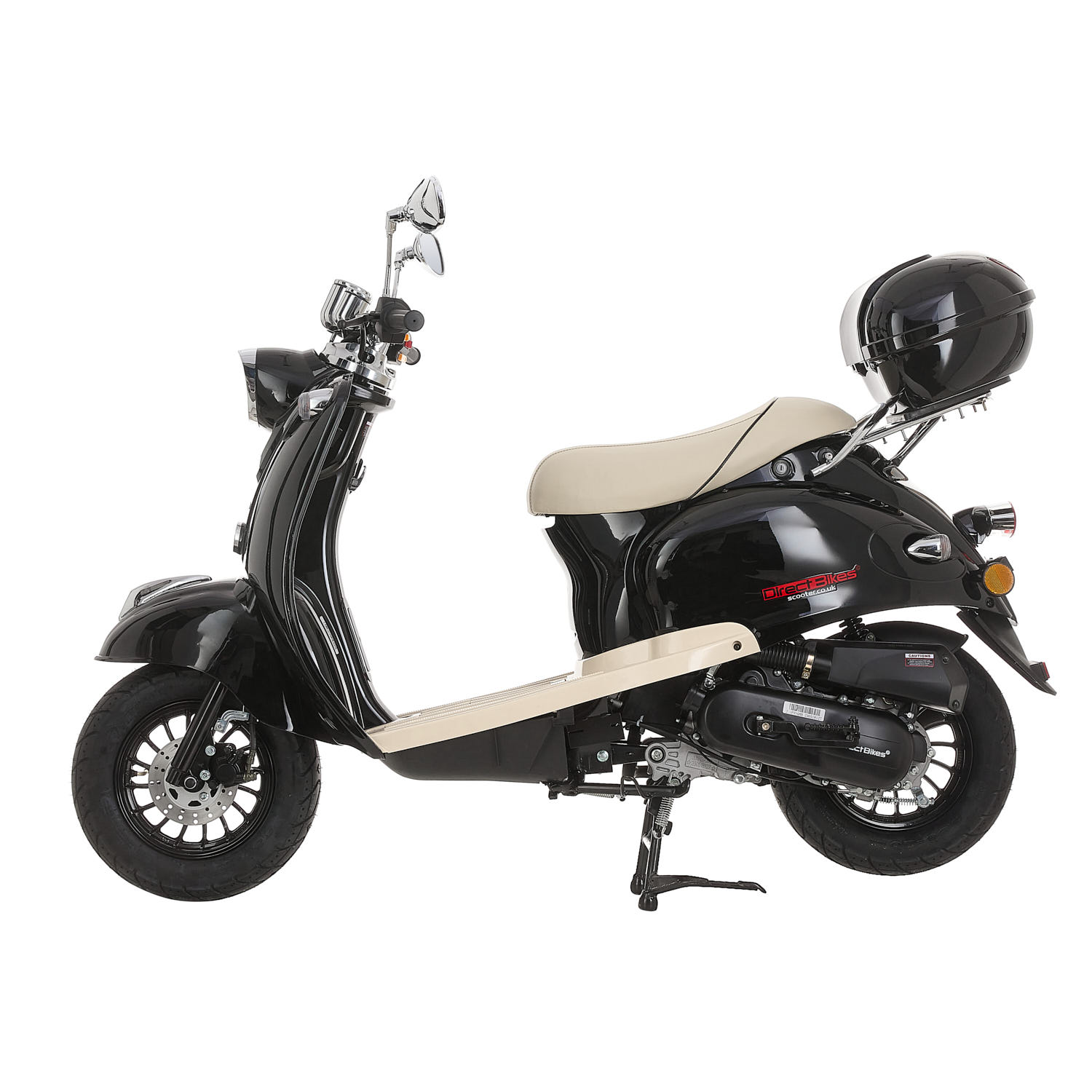

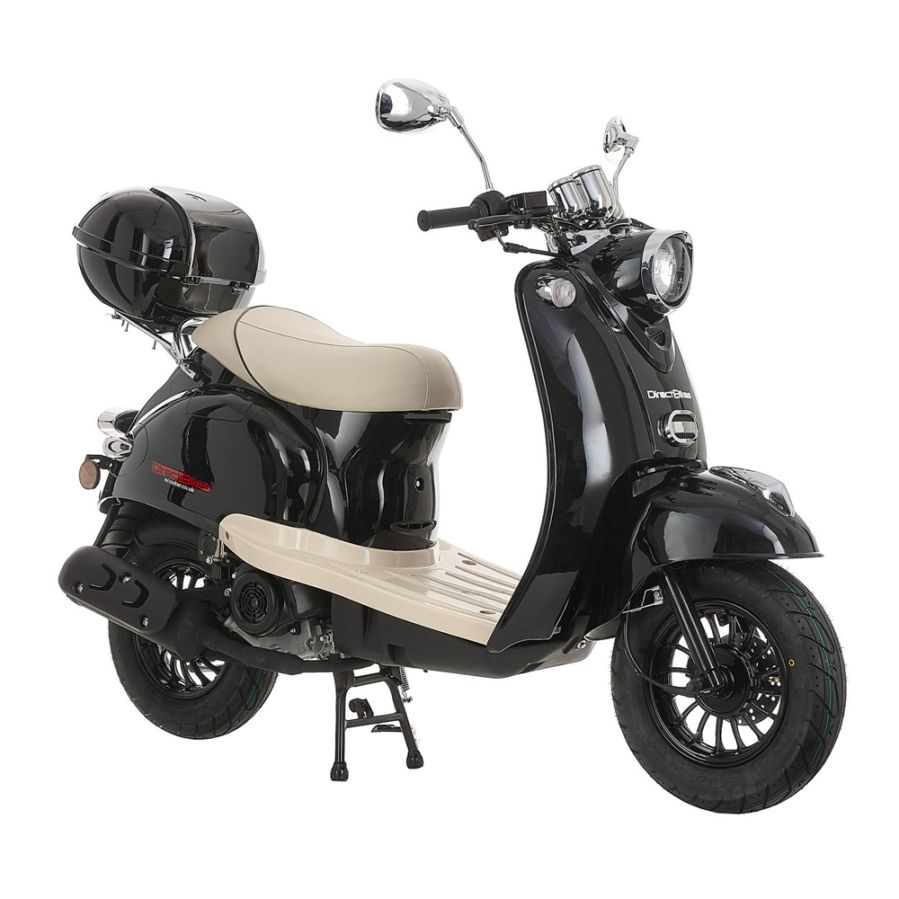

50cc Retro Scooter |
| Model: |
Direct Bikes |
| Overall Length(mm) |
1620mm |
| Overall Width(mm): |
630mm |
| Overall Height(mm): |
1040mm |
| Seat Height(mm): |
715mm |
| WheelBase(mm): |
1195mm |
| Ground Clearance(mm): |
90mm |
| Dry Weight(kg) |
70kg |
| Max. Load Mass(kg): |
155kg |
| Max. Speed(mph): |
30mph |
| Tyre: |
Front: 3.00-10
Rear: 3.00-10 |
| Driving Mode: |
C.V.T |
| Brake Mode: |

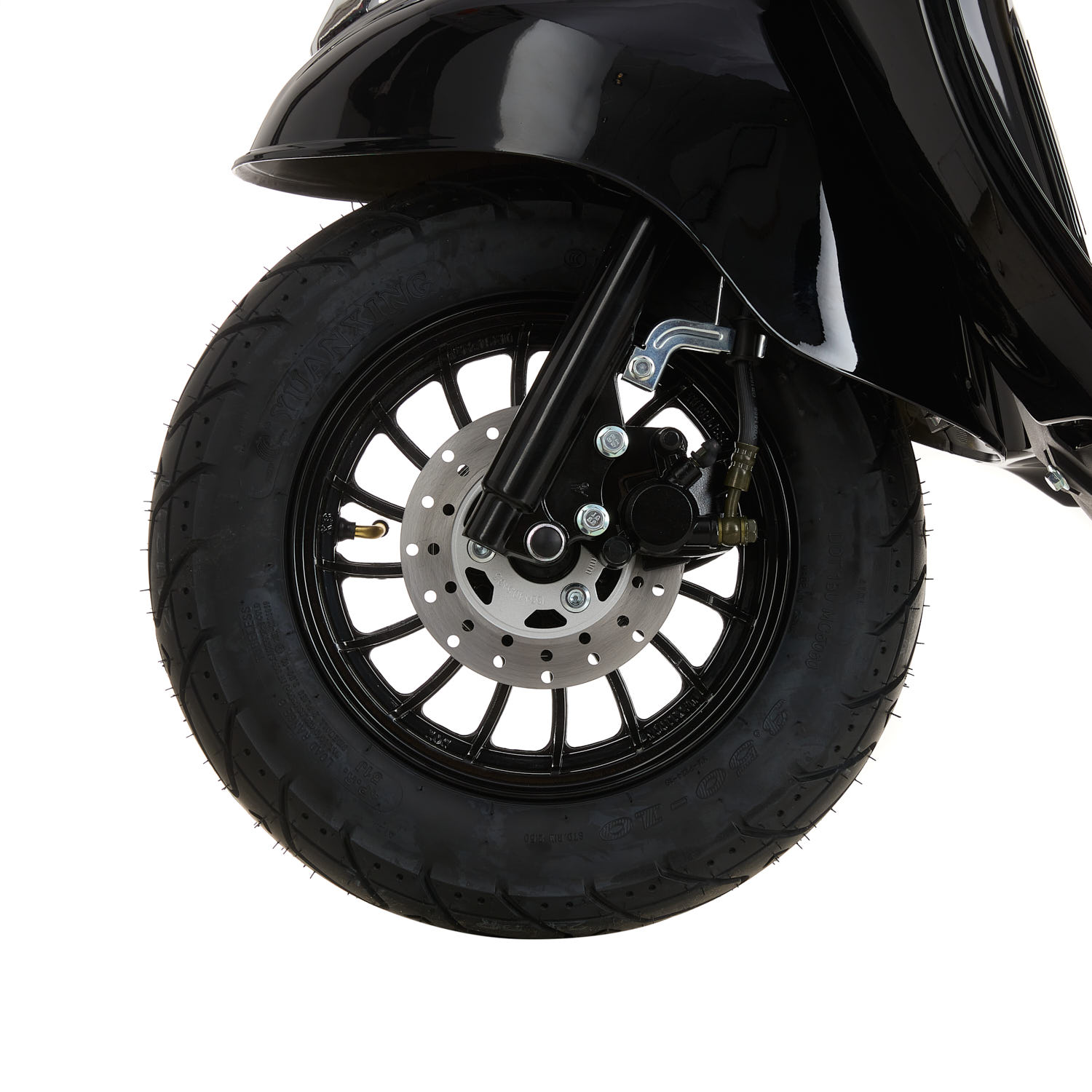

Front: DISC
Rear: Drum |
| Brake Operation Mode: |
Front: By Hand
Rear: By Hand |
| Engine: |
DB139QMB |
| Engine Type: |
Single Cylinder Four Stroke |
| Cylinder Type: |
Horizontal |
| Bore X Stroke(mm): |
Dia.39 X 41.5(mm) |
| Piston Displacement: |
49.5cc |
| Compression Ratio: |
10.5:1 |
| Max. Torque(N.M/rpm): |
3.0/6000(N.M/rpm) |
| Lubrication: |
Compress & Splash Combined Type |
| Max. Output Power(kw/rpm): |
2.3/8000(kw/rpm) |
| Ignition: |
C.D.I |
| Started System: |
Electric Starter/Kick Starter |
| Engine Cooling: |
Forced Air Cooling |
| Transmission: |
Stageless Transmission |
| Clutch: |
Automatic Centrifugal |
| Battery: |
12V-4AH |
| Fuel Capacity: |
5.4L |
